Detailed parameters
|
Basic Data |
|||
|
Coil pulse width |
50~100ms Min |
||
|
Operation time |
20ms Max |
||
|
Comeback time |
20ms Max |
||
|
Dielectric strength(50/60Hz)for 1 min |
Between coil&contact |
4000VAC/min |
|
|
Between contacts |
2000VAC/min |
||
|
Insulation resistance |
Min.1000MΩ(500VDC) |
||
|
Ambient Temp. |
-40/+70℃ |
||
|
Weight |
120g |
||
|
Terminal type |
PCB&QC |
||
|
Package |
Plastic sealed dusted proof |
||
|

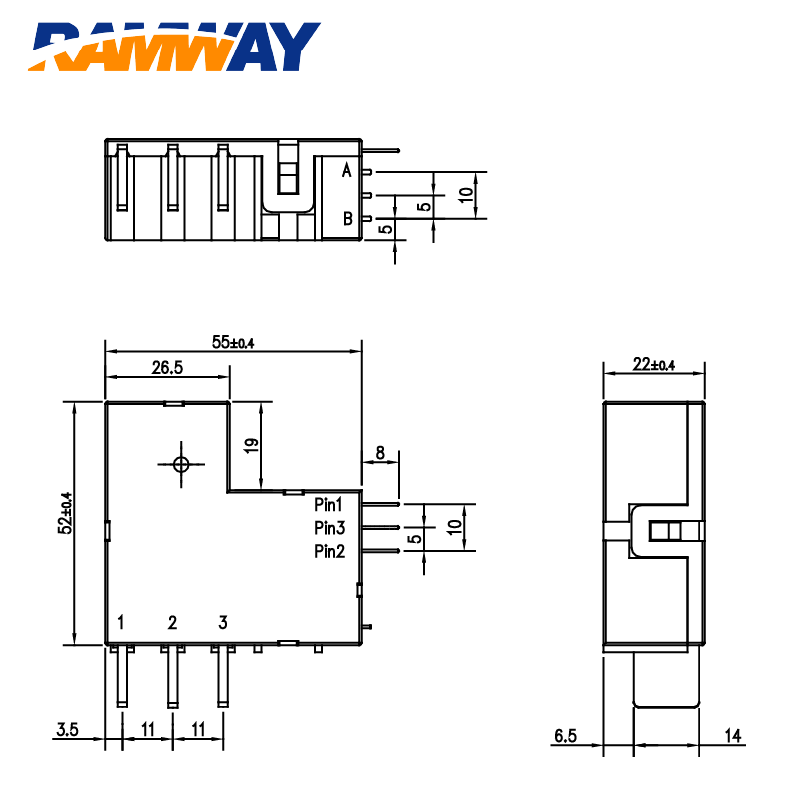

Size(mm) |
55*53.5*21.5 |
||
|
Contact Data |
|||
|
Contact form |
Z |
||
|
Contact material |
AgSnO2 |
||
|
Contact resistance |
0.8mΩ |
||
|
Maximum switching current |
120A |
||
|
Maximum switching voltage |
250VAC |
||
|
Maximum switching power |
30,0000VA |
||
|
Rated load electrical life on/off ratio(S)10:20 |
load voltage |
220-250VAC |
|
|
load current |
100A |
||
|
PF=1.0 PF=0.5 |
5000+5000 |
||
|
Mechanical life |
100,000 cycles |
||
|
Coil Data |
|||
|
VDC Rated Voltage |
Resistance±10%（Ω） |
VDC Rated Voltage |
|
|
Single |
Double |
||
|
6 |
5 |
2.5×2 |
≤70% Rated Voltage |
|
9 |
10 |
5.0×2 |
|
|
12 |
18 |
9.0×2 |
|
|
24 |
72 |
36.0×2 |
|
