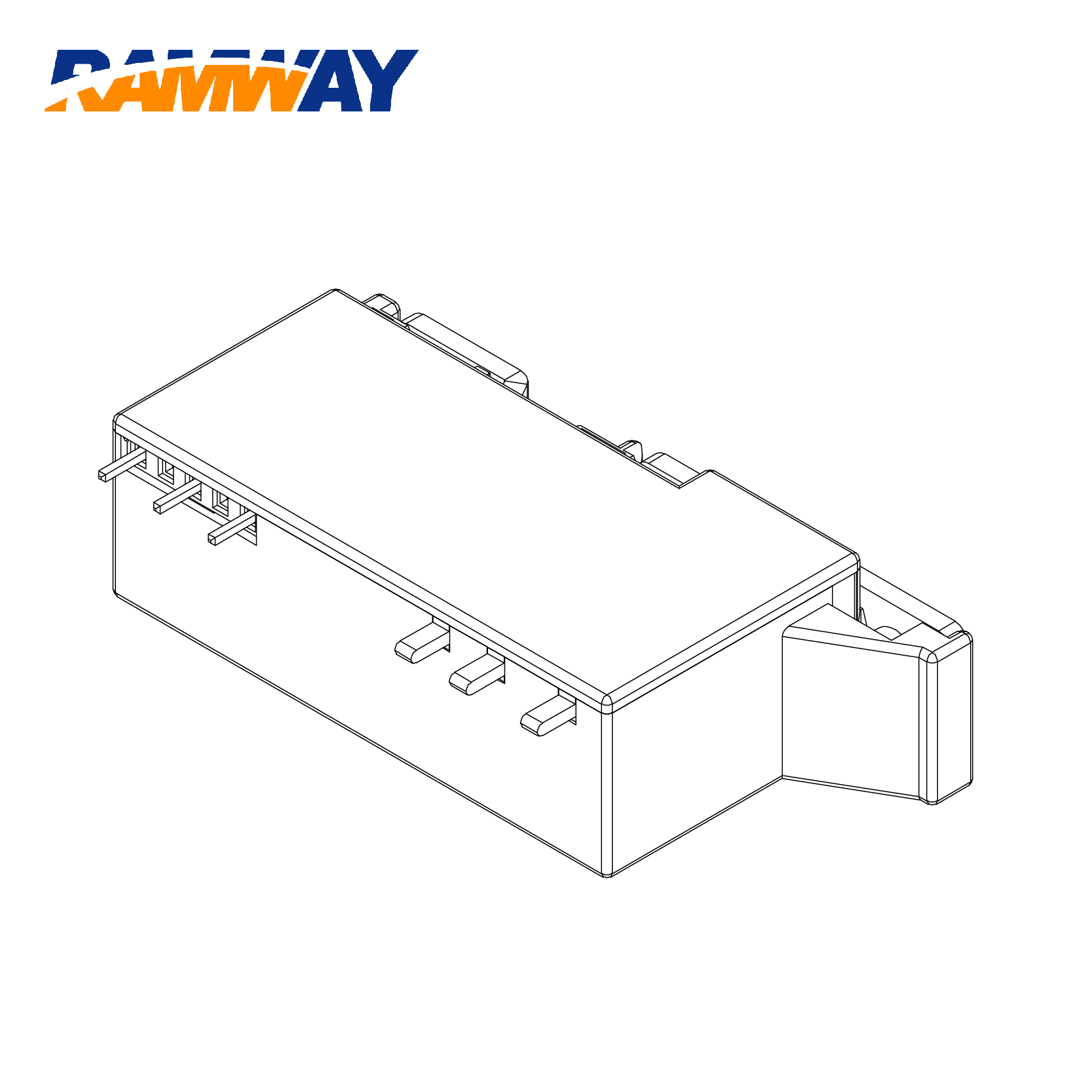

Switching current:25A
SPDT

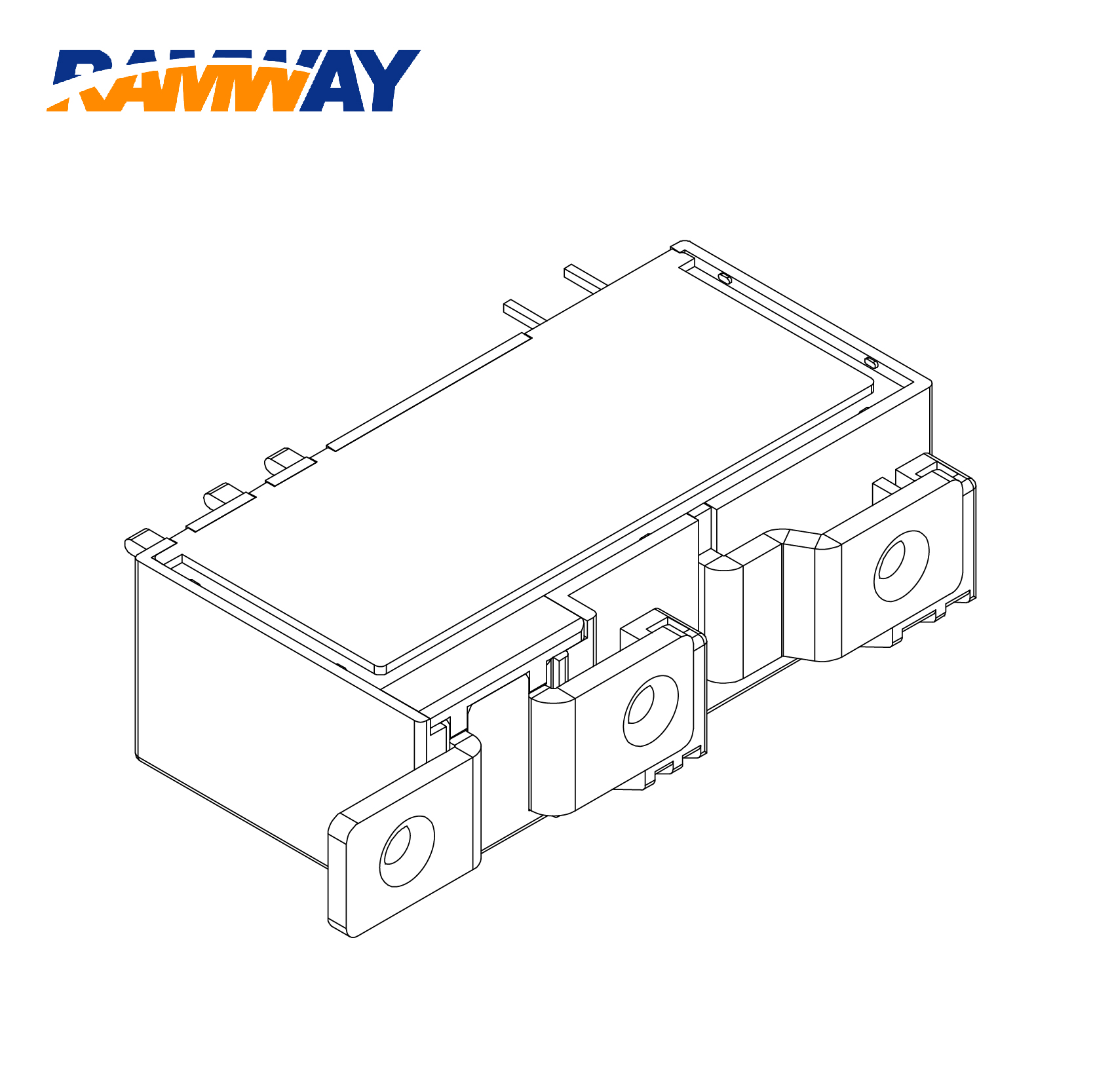

Can be quickly fixed with screw teeth
RoHS
Detailed parameters
|
Basic Data |
||||
|
Coil pulse width |
50~100ms Min |
|||
|
Operation time |
20ms Max |
|||
|
Comeback time |
20ms Max |
|||
|
Dielectric strength(50/60Hz)for 1 min |
Between coil&contact |
4000VAC/min |
||
|
Between contacts |
1500VAC/min |
|||
|
Insulation resistance |
Min.1000MΩ(500VDC) |
|||
|
Ambient Temp. |
-40/+70℃ |
|||
|
Weight |
34g |
|||
|
Terminal type |
PCB |
|||
|
Package |
Plastic sealed dusted proof |
|||
|
Size(mm) |
45.5*24.7*14.4 |
|||
|
Contact Data |
||||
|
Contact form |
Z |
|||
|
Contact material |
AgSnO2 |
|||
|
Contact resistance |
1.5mΩ |
|||
|
Maximum switching current |
25A |
|||
|
Maximum switching voltage |
72VDC |
|||
|
Maximum switching power |
1800VA |
|||
|
Rated load electrical life on/off ratio(S)10:20 |
load voltage |
220-250VAC |
72VDC | |
|
load current |
25A |
|||
|
PF=1.0 PF=0.5 |
5000+5000 |
10000 | ||
|
Mechanical life |
100,000 cycles |
|||
|
Coil Data |
||||
|
VDC Rated Voltage |
Resistance±10%（Ω） |
VDC Rated Voltage |
||
|
Single |
Double |
|||
|
6 |
12 |
6.0×2 |
≤70% Rated Voltage |
|
|
9 |
27 |
13.5×2 |
||
|
12 |
48 |
24.0×2 |
||
|
24 |
192 |
96.0×2 |
||
