Switching current:40A
SPDT

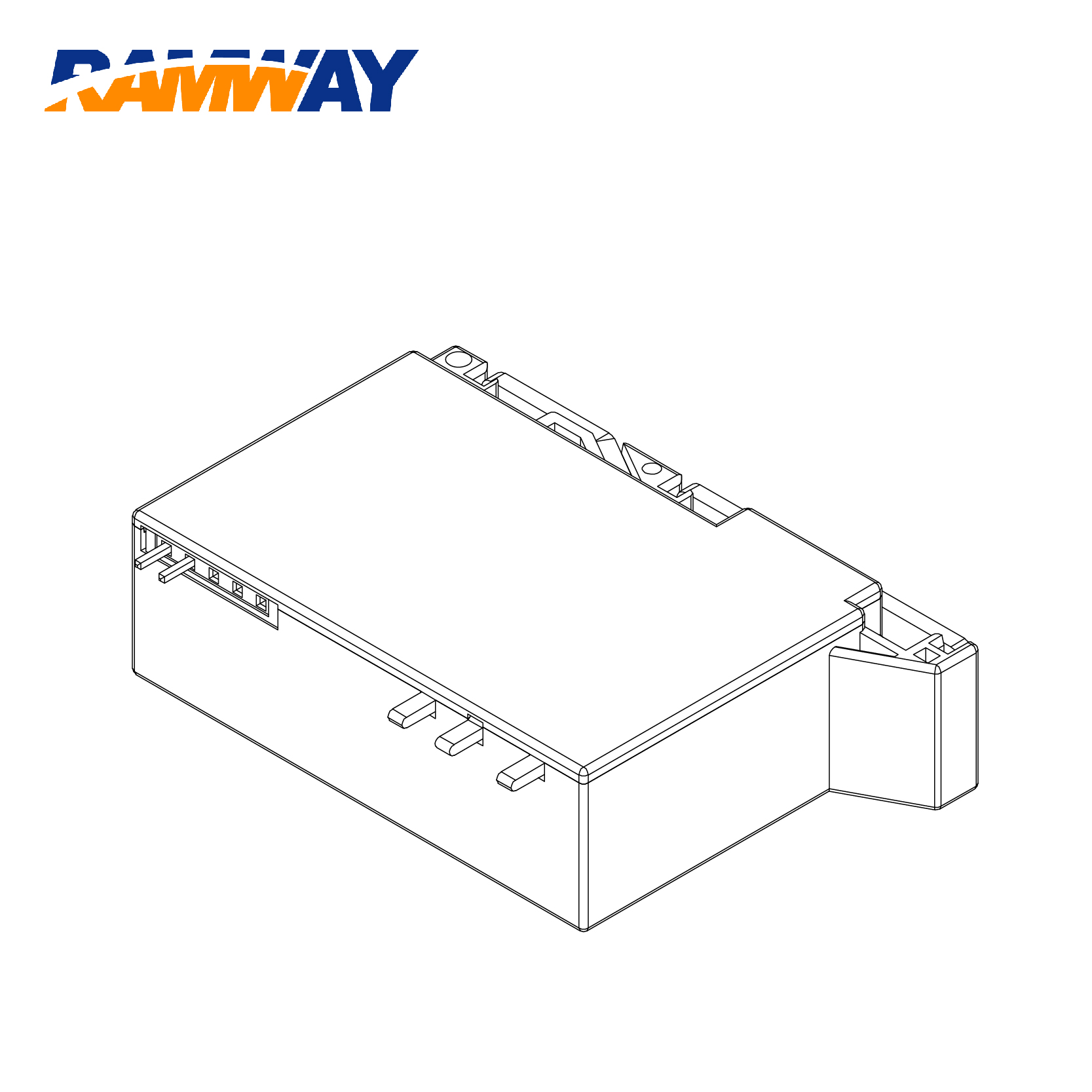

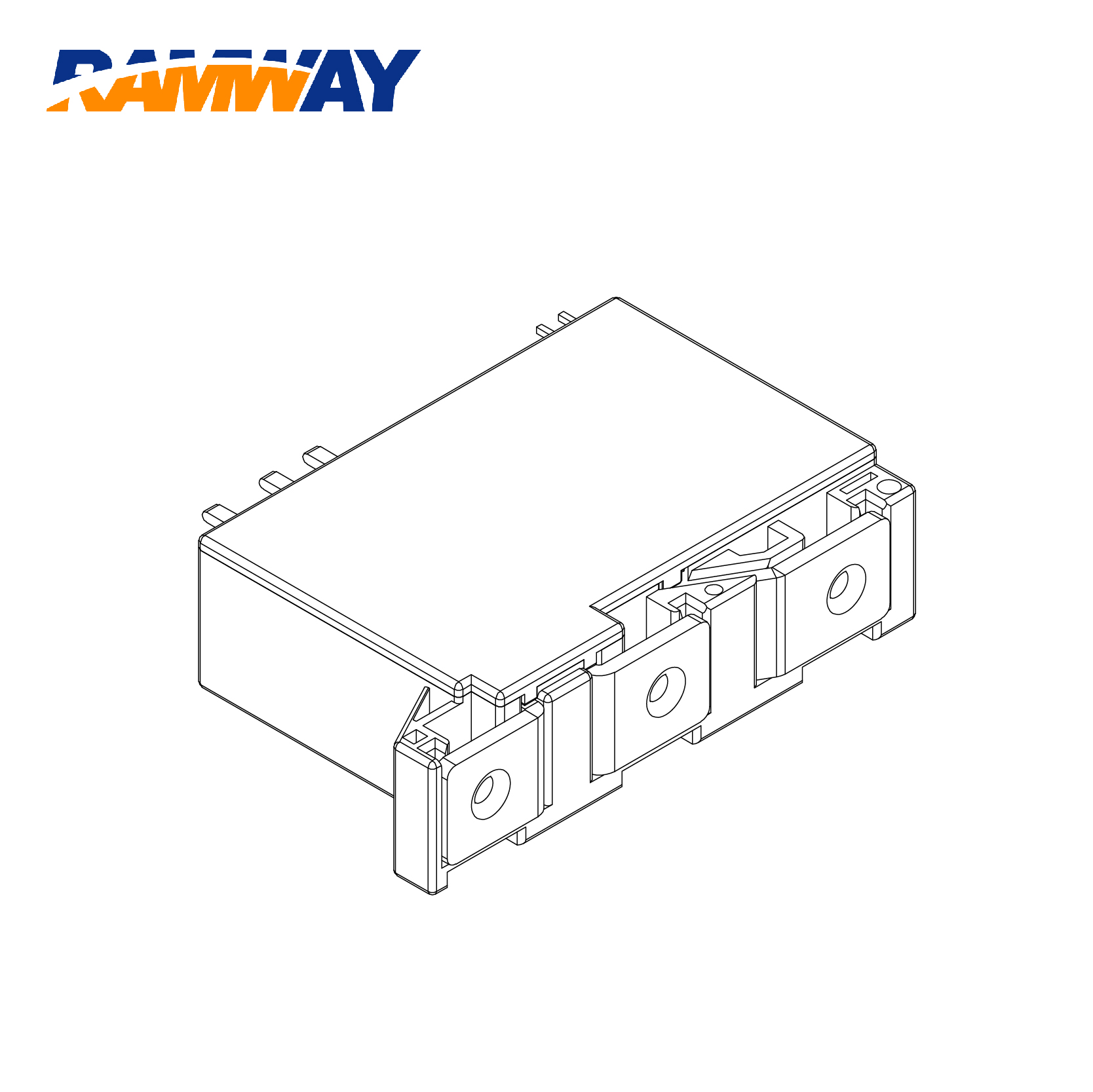

Can be quickly fixed with screw teeth
RoHS
Product Description
| Basic Data | ||||
| Coil pulse width | 50~100ms Min. | |||
| Operation time | 20ms Max. | |||
| Comeback time | 20ms Max. | |||
| Dielectric strength(50/60Hz)for 1 min | Between coil&contact | 4000VAC/min | ||
| Between contacts | 1500VAC/min | |||
| Insulation resistance | Min.1000MΩ(500VDC) | |||
| Ambient Temp. | -40/+70℃ | |||
| Weight | 56.6g | |||
| Terminal type | PCB | |||
| Package | Plastic sealed dusted proof | |||
| Size(mm) | 55.5*34.5*15 | |||
| Contact Data | ||||
| Contact form | Z | |||
| Contact material | AgSnO2 | |||
| Contact resistance | 1.5mΩ | |||
| Maximum switching current | 40A | |||
| Maximum switching voltage | 72VDC | |||
| Maximum switching power | 2880VA | |||
| Rated load electrical life on/off ratio(S)10:20 | load voltage | 220-250VAC | 72VDC | |
| load current | 40A | |||
| PF=1.0 PF=0.5 | 5000+5000 | 10000 | ||
| Mechanical life | 100,000 cycles | |||
| Coil Data | ||||
| VDC Rated Voltage | Resistance±10%（Ω） | VDC Rated Voltage | ||
| Single | Double | |||
| 6 | 12 | 6.0×2 | ≤70% Rated Voltage | |
| 9 | 27 | 13.5×2 | ||
| 12 | 48 | 24.0×2 | ||
| 24 | 192 | 96.0×2 | ||
