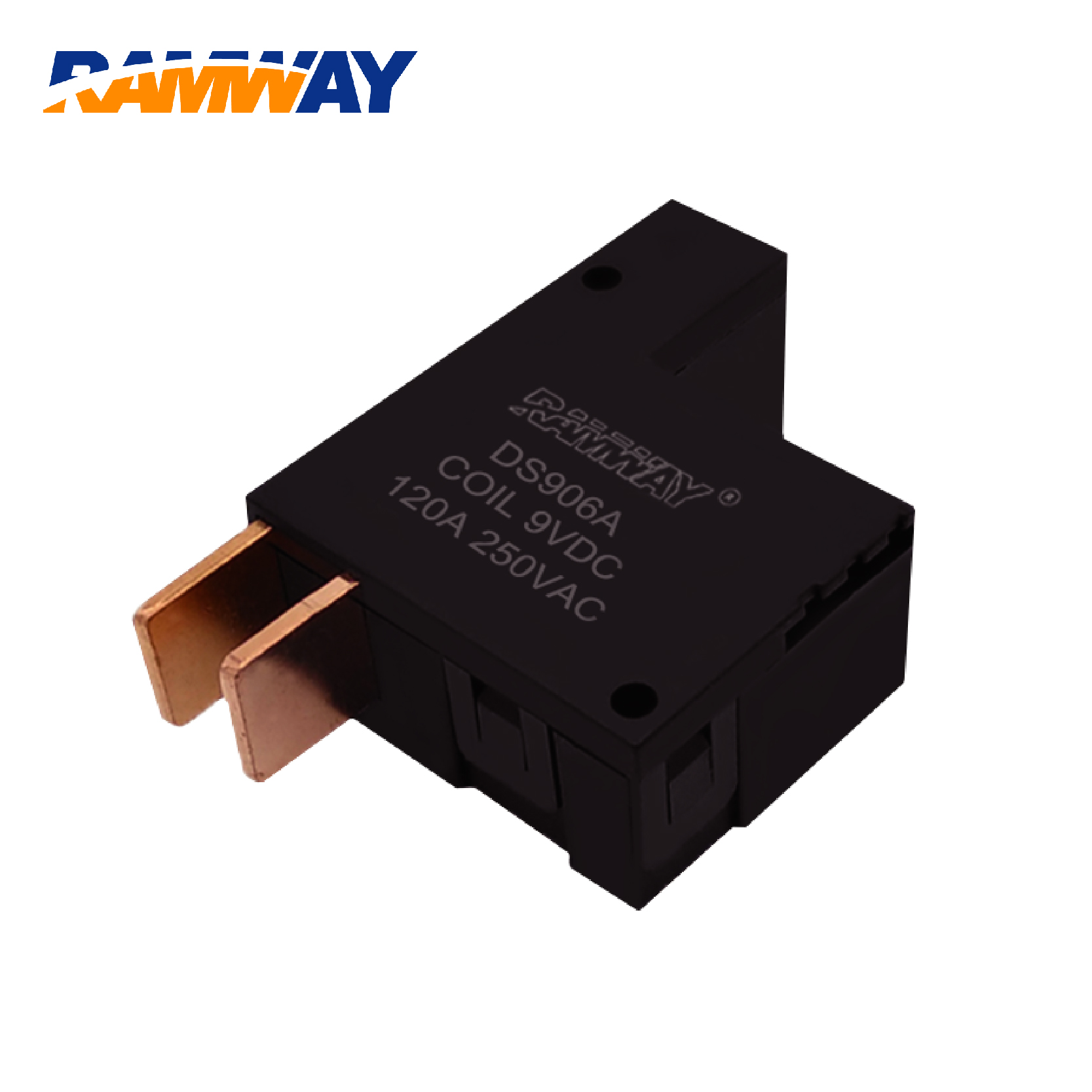

Switching current:100A
Small size, low consumption
IEC62055-31 UC3(TUV)
RoHS

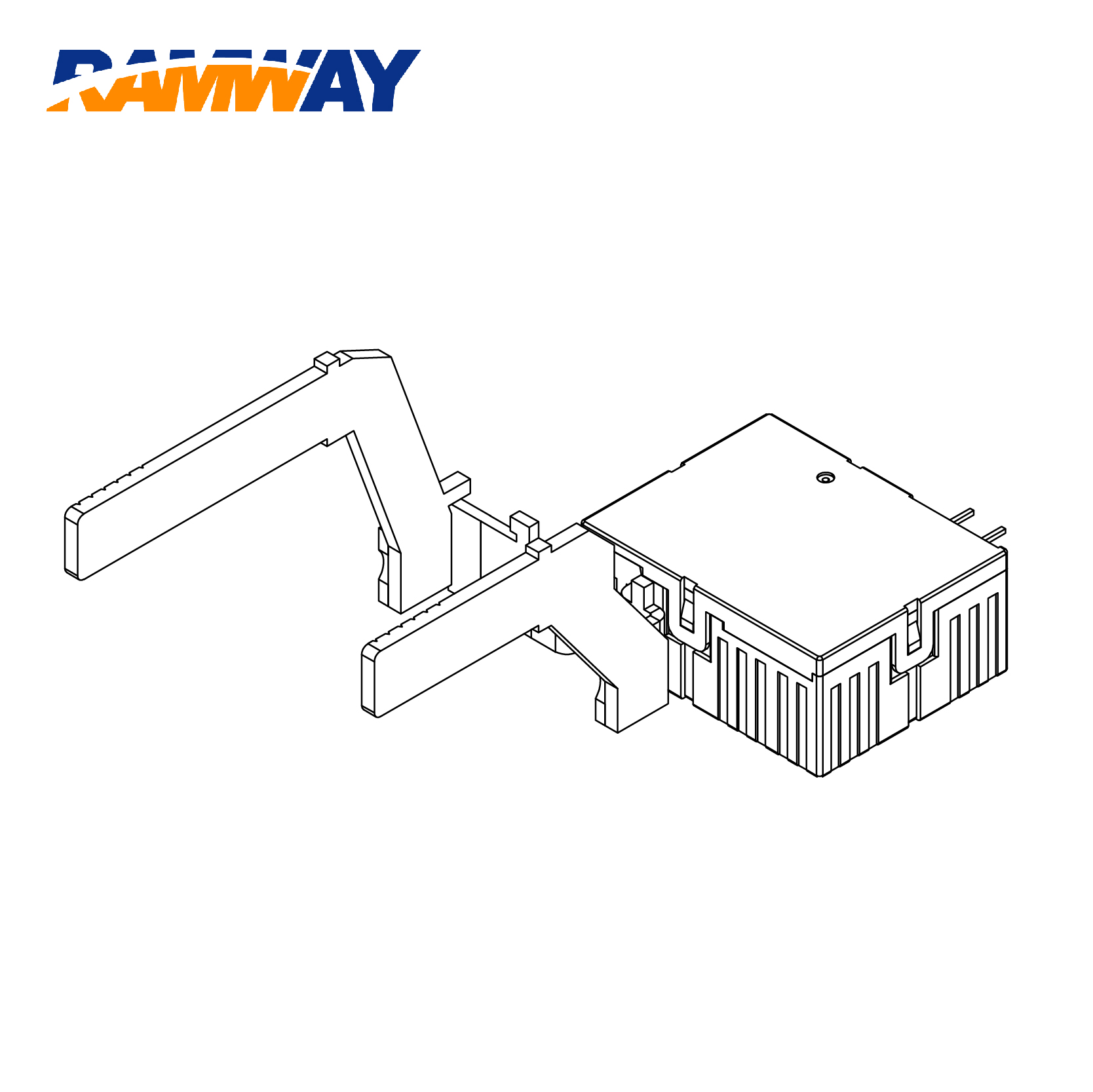

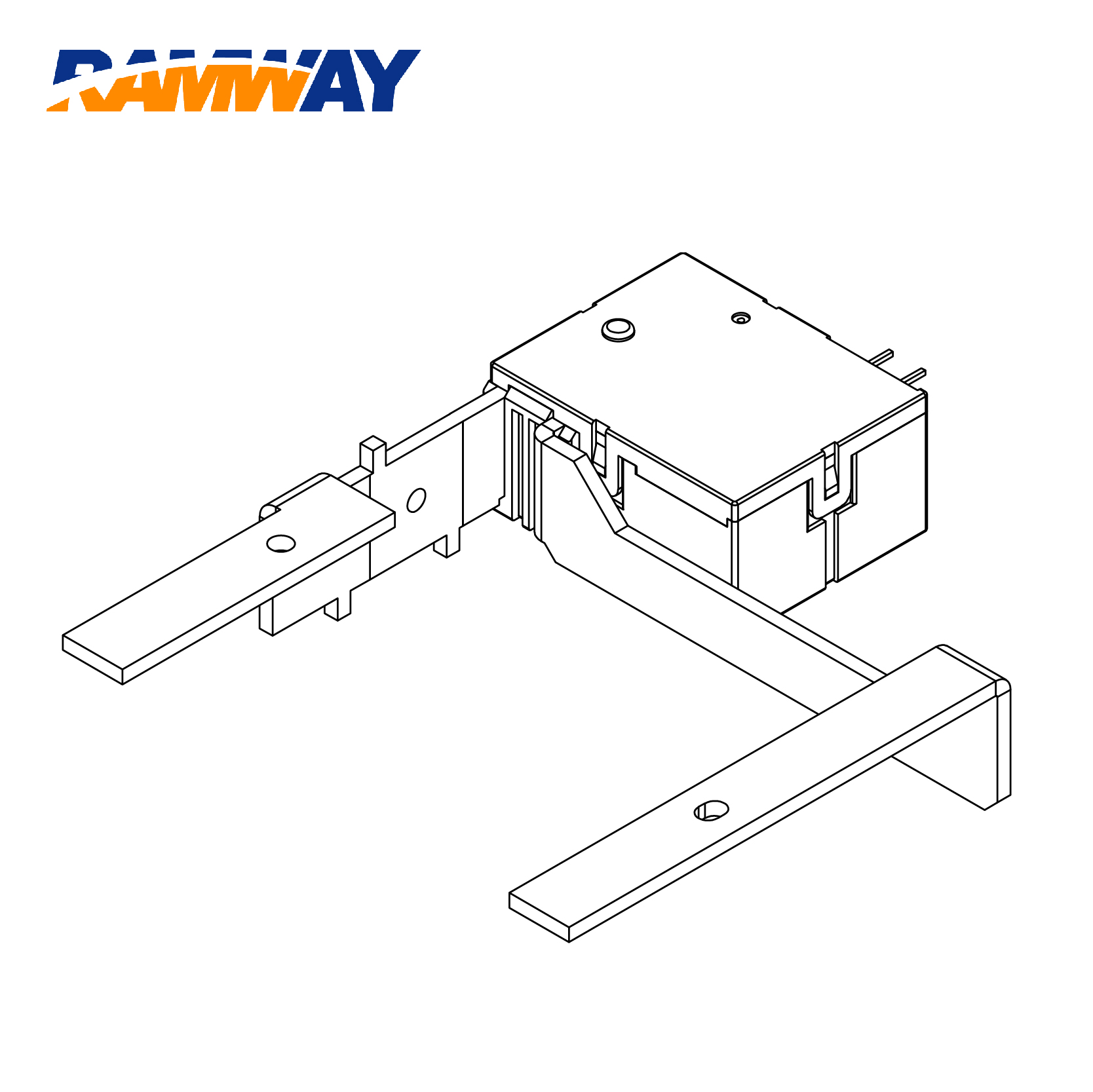

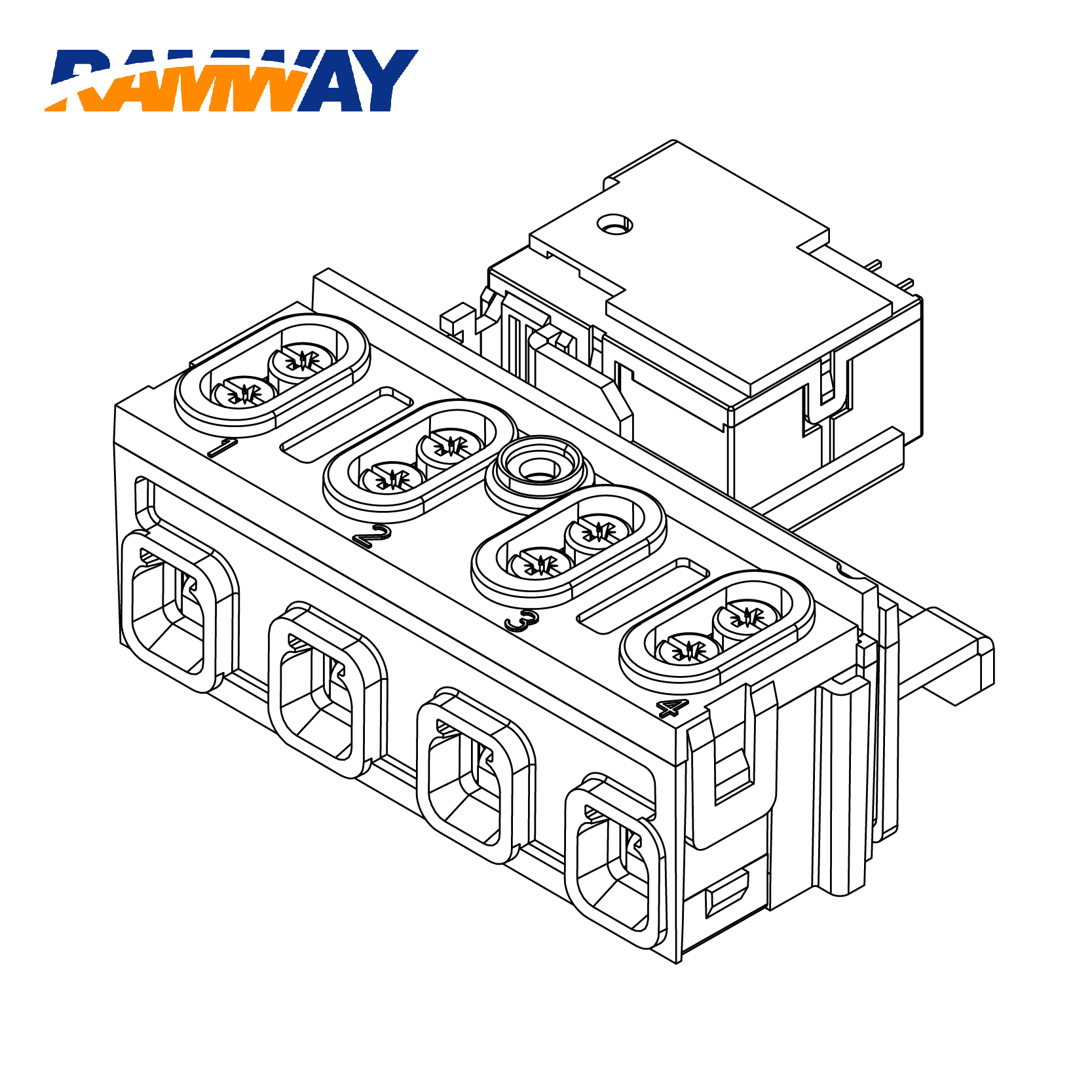

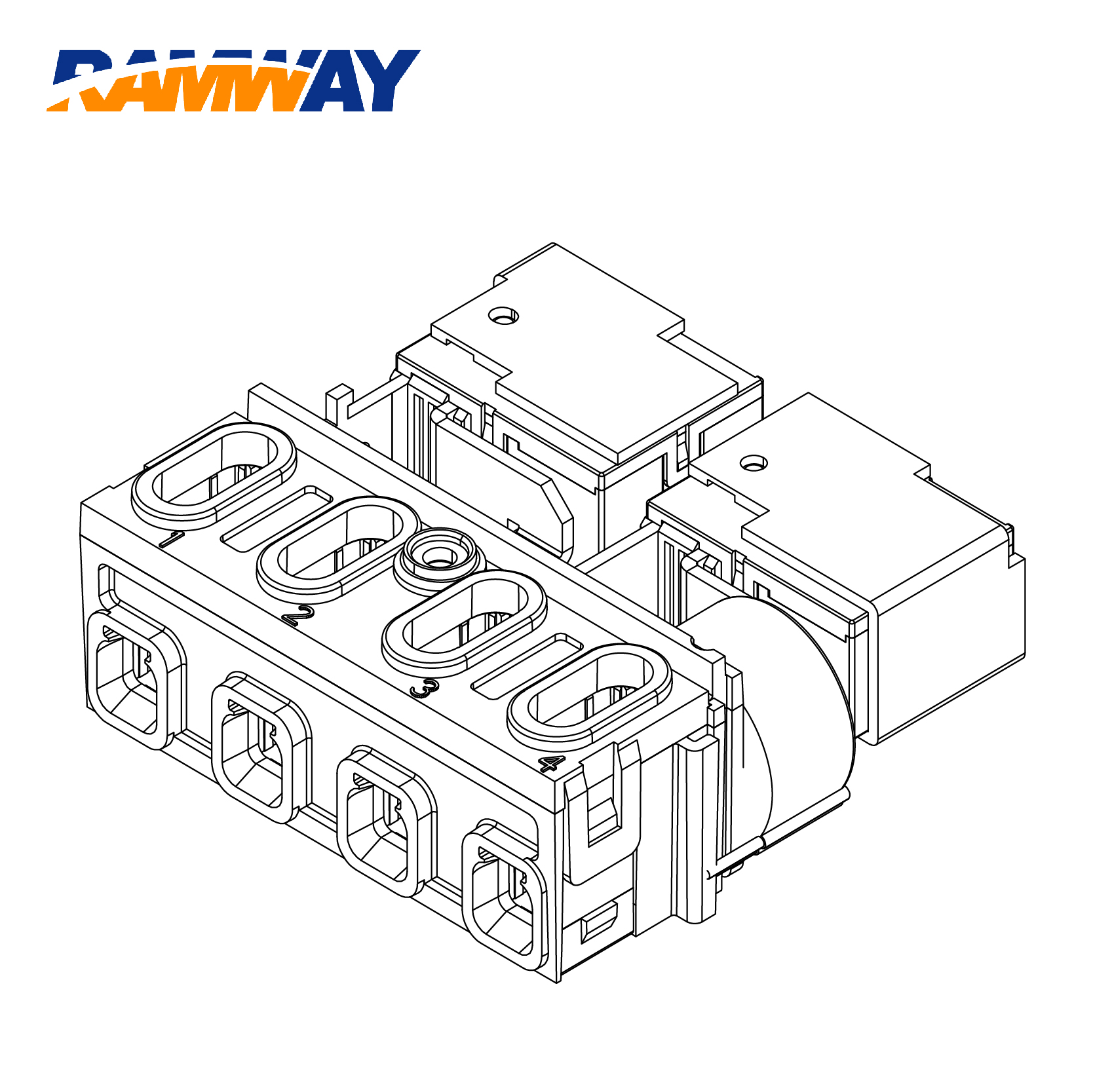

Product Description
|
Basic Data |

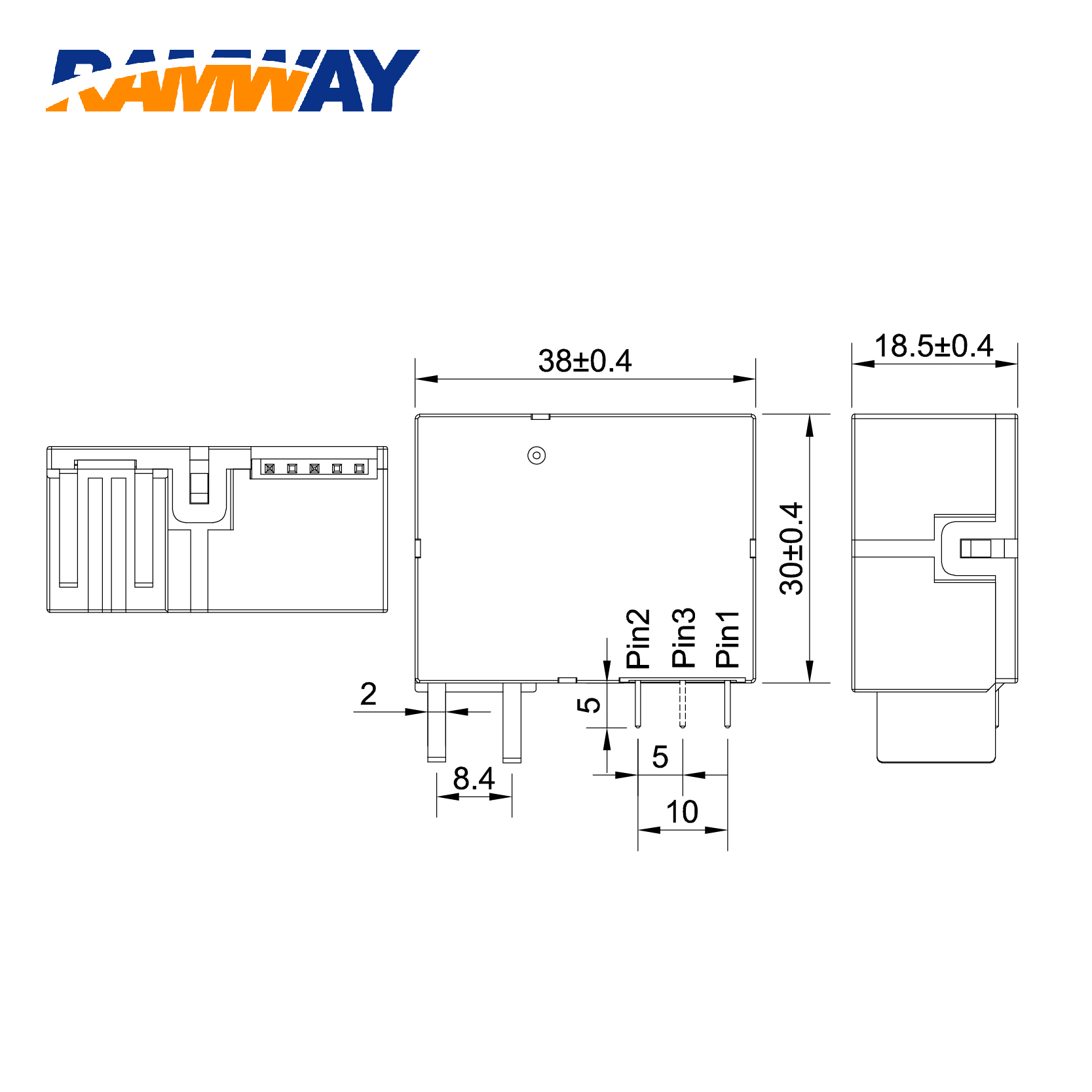

||||
| Coil pulse width | 50~100ms Min. | |||
| Operation time | 20ms Max. | |||
| Comeback time | 20ms Max. | |||
| Dielectric strength(50/60Hz)for 1 min | Between coil&contact | 4000VAC/min | ||
| Between contacts | 2000VAC/min | |||
| Insulation resistance | Min.1000MΩ(500VDC) | |||
| Ambient Temp. | -40/+70℃ | |||
| Weight | 80g | |||
| Terminal type | PCB&QC | |||
| Package | Plastic sealed dusted proof | |||
| Size(mm) | 43*34.5*21 | |||
|
Contact Data |
||||
| Contact?form | 1A&1B | |||
| Contact material | AgSnO2 | |||
| Contact resistance | 0.6mΩ | |||
| Maximum switching current | 100A | |||
| Maximum switching voltage | 250VAC | |||
| Maximum switching power | 25,000VA | |||
| Rated load electrical life on/off ratio(S)10:20 | load voltage | 220-250VAC | ||
| load current | 100A | |||
| PF=1.0 PF=0.5 | 5000+5000 | |||
| Mechanical life | 100,000 cycles | |||
|
Coil Data |
||||
| VDC Rated Voltage | Resistance±10%（Ω） | VDC Rated Voltage | ||
| Single | Double | |||
| 6 | 13 | 6.5×2 | ≤70% Rated Voltage | |
| 9 | 34 | 17.0×2 | ||
| 12 | 51 | 25.5×2 | ||
| 24 | 230 | 115.0×2 | ||
