Switching Current:50A
Inline PCB wielding
Can be equipped with a manual lever
RoHS

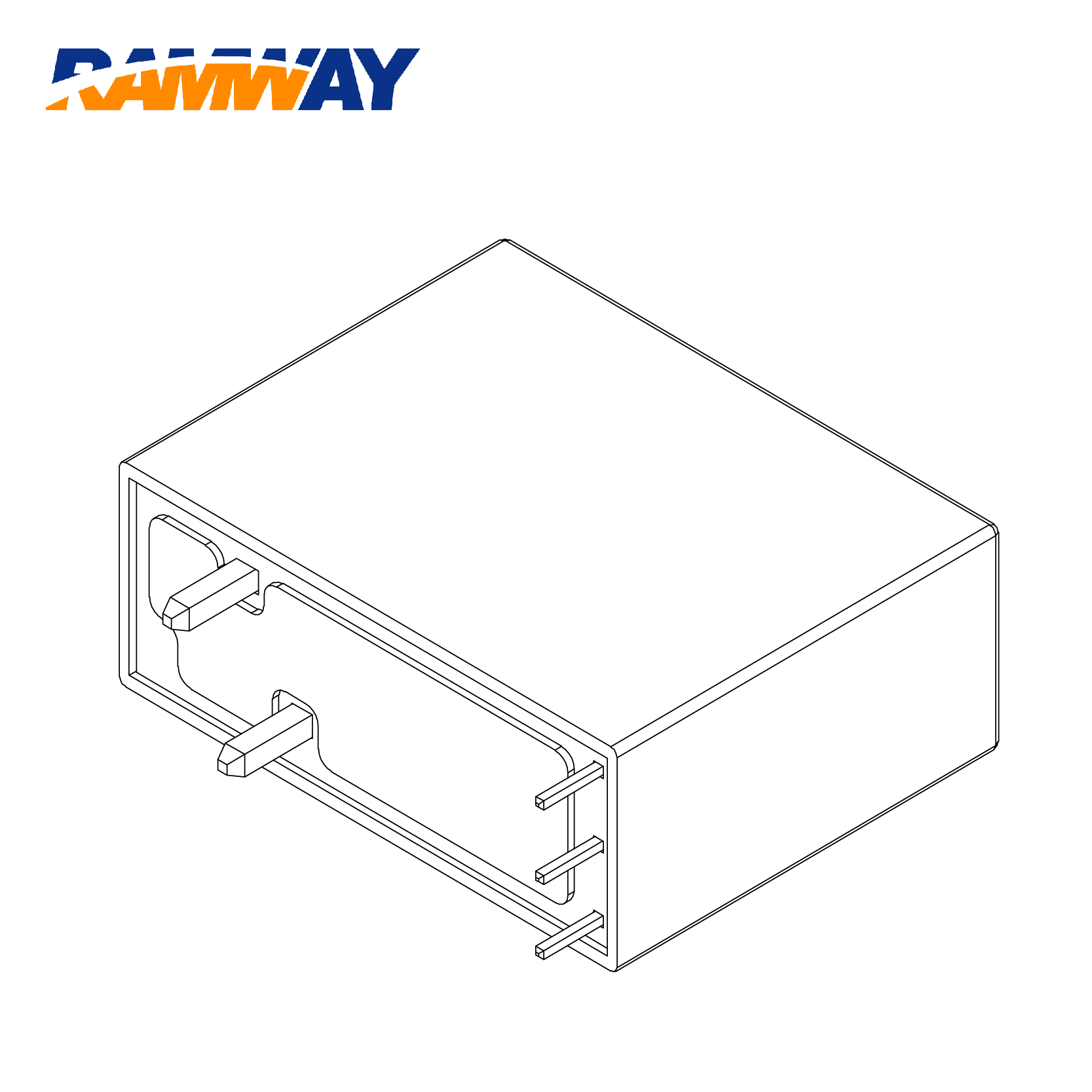

Product Description
| Basic Data | ||||
| Coil pulse width | 50~100msMin. | |||
| Operation time | 20ms Max. | |||
| Comeback time | 20ms Max. | |||
| Dielectric strength(50/60Hz)for 1 min | Between coil&contact | 4000VAC/min | ||
| Between contacts | 2000VAC/min | |||
| Insulation resistance | Min.1000MΩ(500VDC) | |||
| Ambient Temp. | -40/+70℃ | |||
| Weight | 20.4g | |||
| Terminal type | PCB | |||
| Package | Plastic sealed dusted proof | |||
| Size(mm) | 39*30.2*15 | |||
| Contact Data | ||||
| Contact?form | 1A&1B | |||
| Contact material | AgSnO2 | |||
| Contact resistance | 1.5mΩ | |||
| Maximum switching current | 50A | |||
| Maximum switching voltage | 250VAC | |||
| Maximum switching power | 12500VA | |||
| Rated load electrical life on/off ratio(S)10:20 | load voltage | 220-250VAC | ||
| load current | 50A | |||
| PF=1.0 PF=0.5 | 5000+5000 | |||
| Mechanical life | 100,000 cycles | |||
| Coil Data | ||||
| VDC Rated Voltage | Resistance±10%（Ω） | VDC Rated Voltage | ||
| Single | Double | |||
| 6 | 18 | 9.0×2 | ≤70% Rated Voltage | |
| 9 | 41 | 20.5×2 | ||
| 12 | 72 | 36.0×2 | ||
| 24 | 288 | 144.0×2 | ||
?
