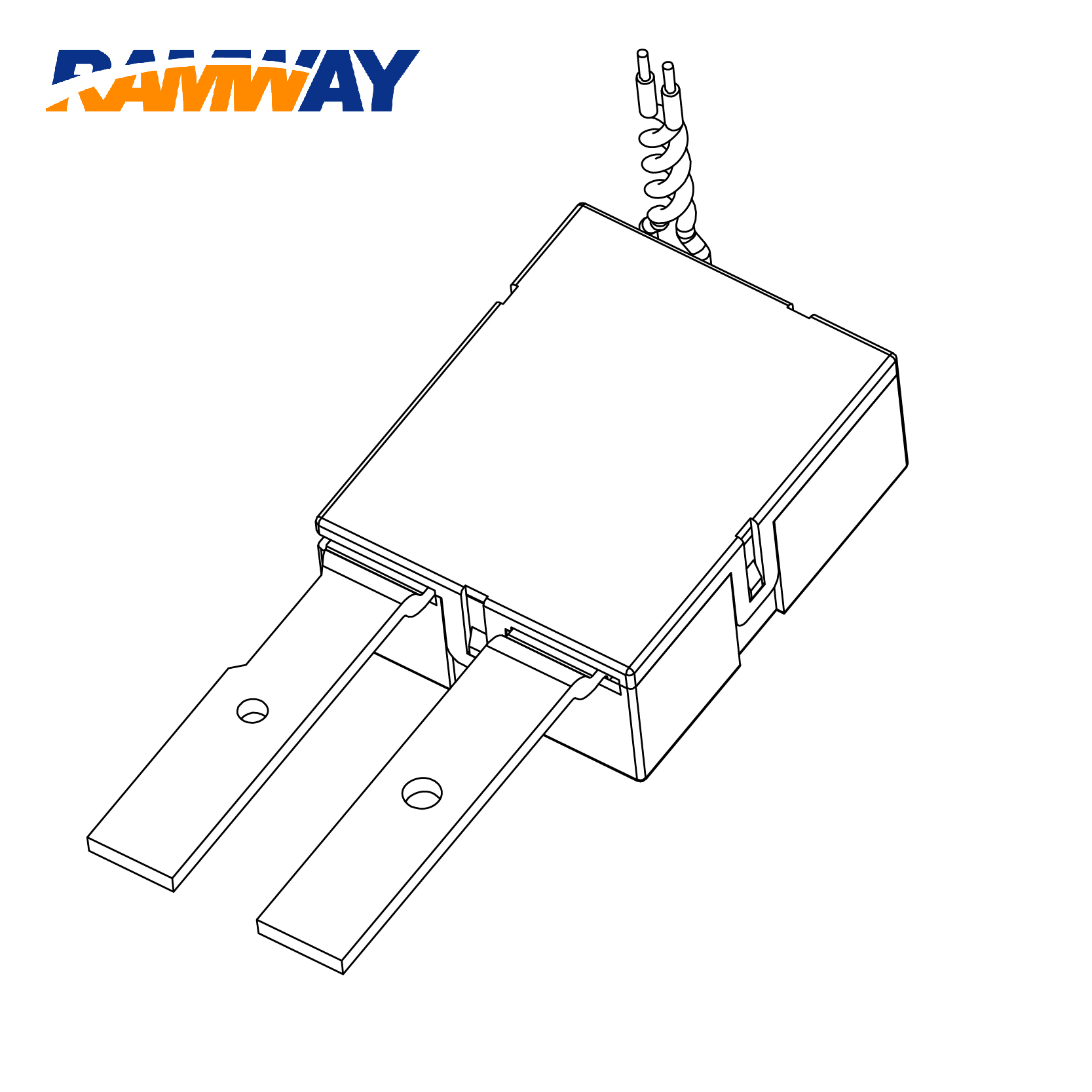

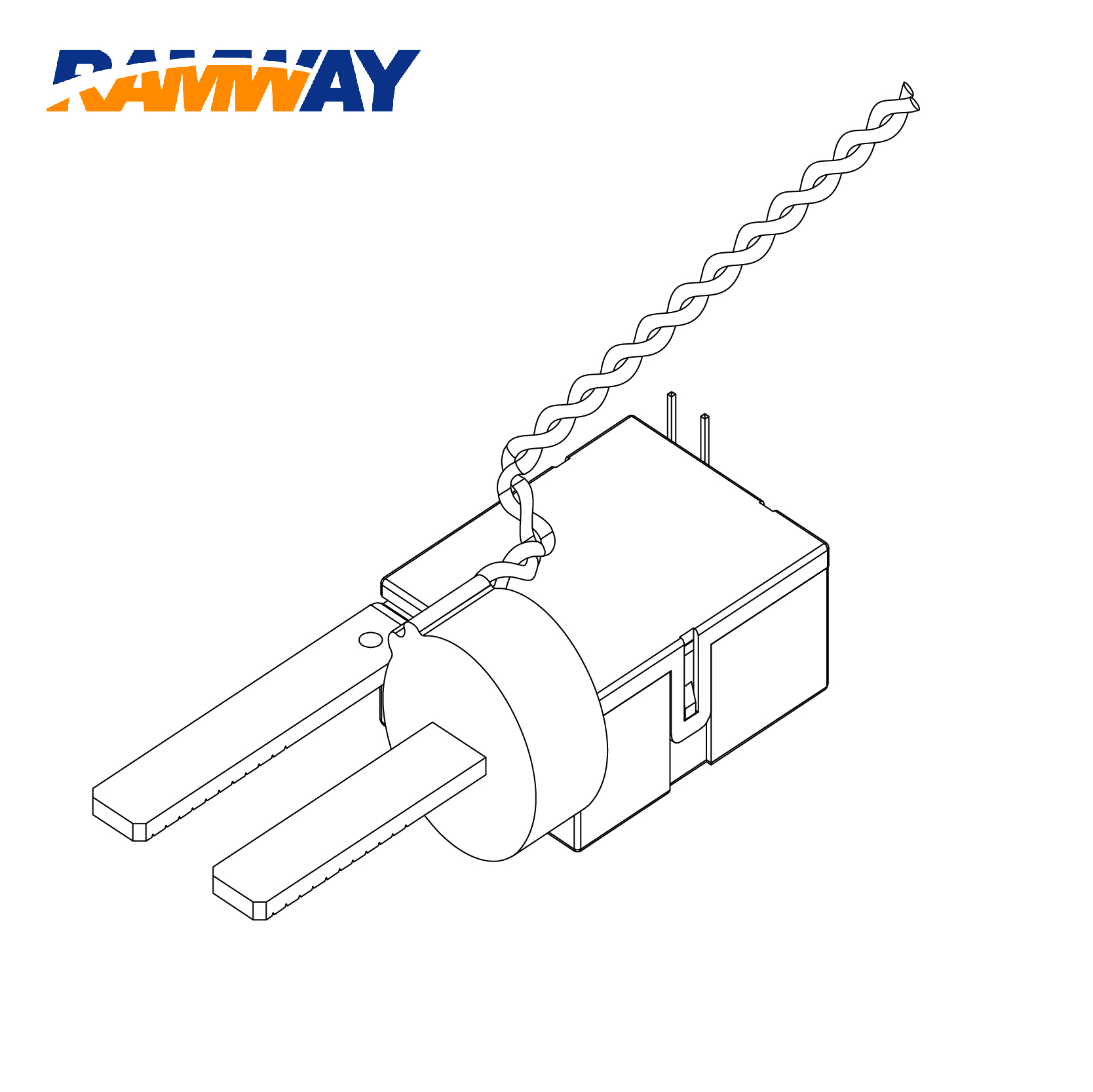

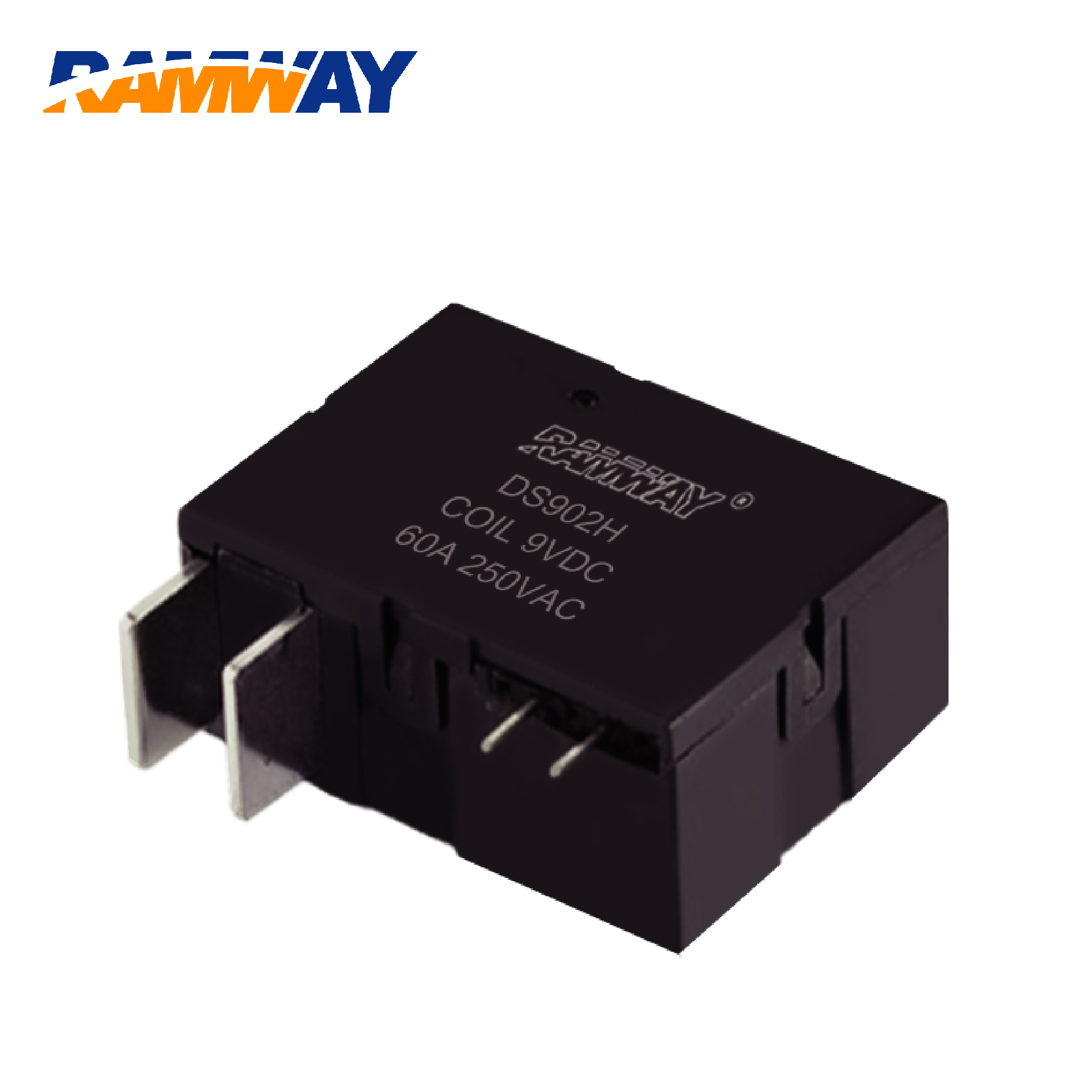

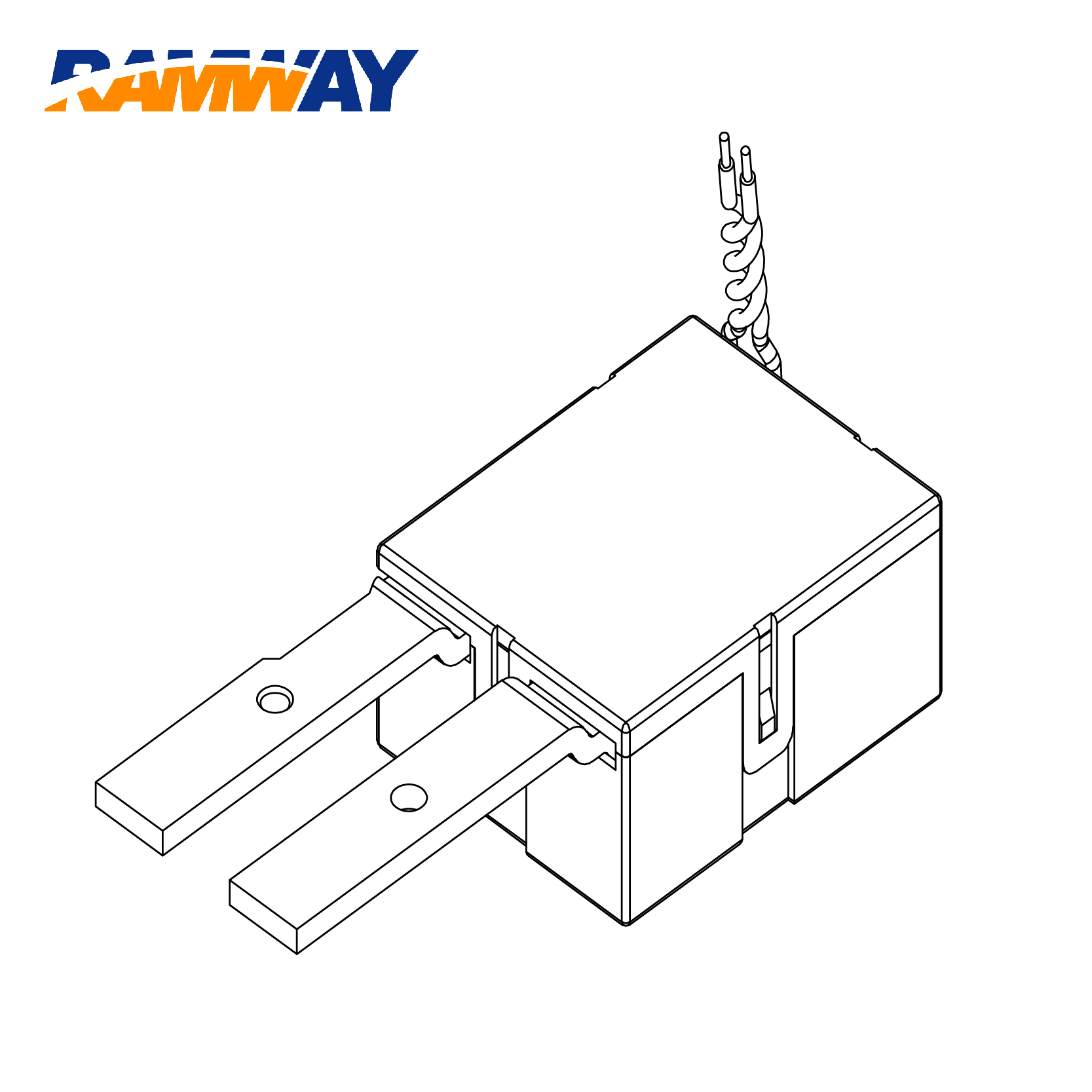

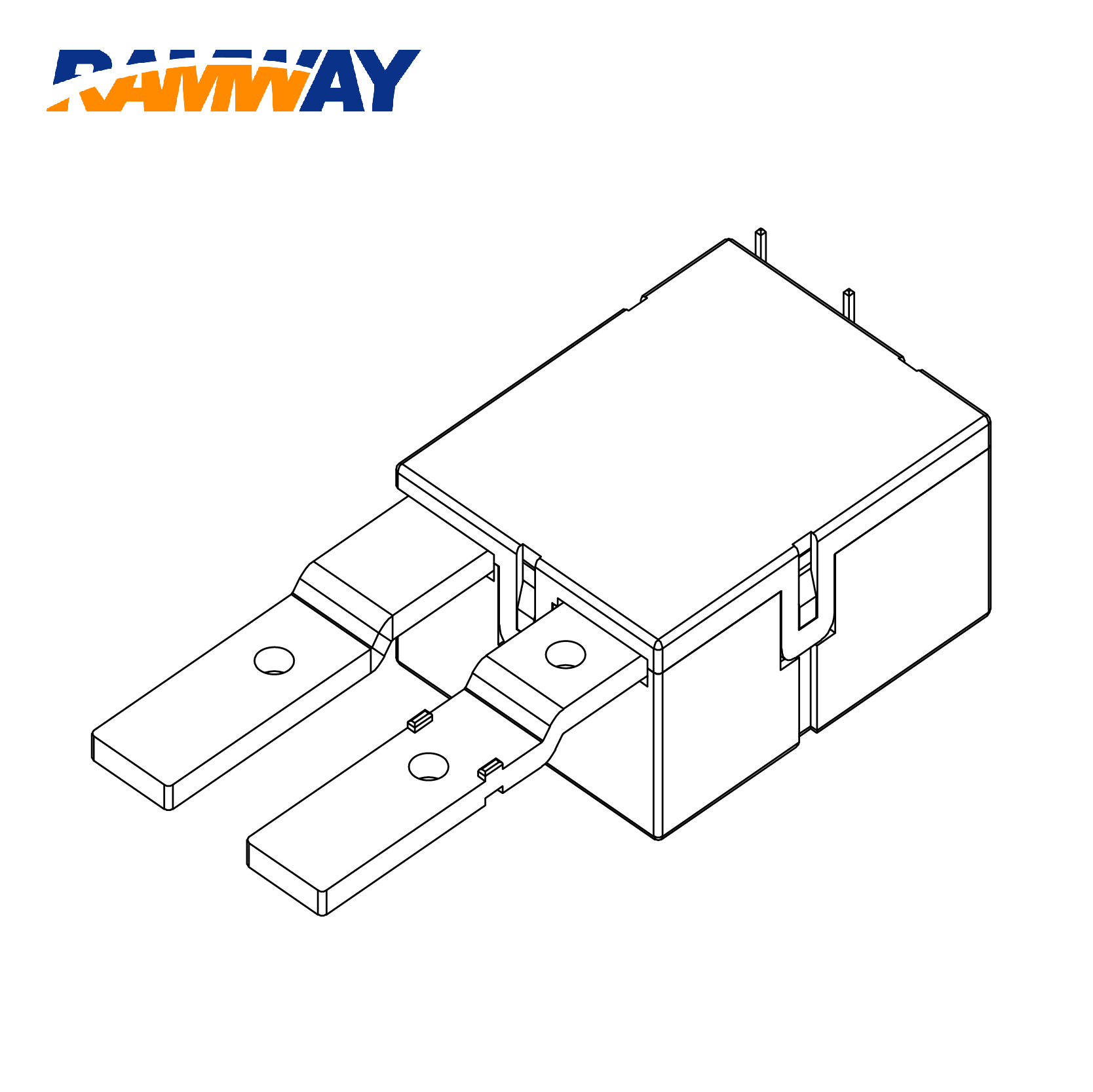

Switching current：100A
Can work reliably in circuit for a long time
RoHS
Product Description
|
Basic Date |
||||
| Coil pulse width | 50~100ms Min. | |||
| Operation time | 20ms Max. | |||
| Comeback time | 20ms Max. | |||
| Dielectric strength(50/60Hz)for 1 min | Between coil&contact | 4000VAC/min | ||
| Between contacts | 2000VAC/min | |||
| Insulation resistance | Min.1000MΩ(500VDC) | |||
| Ambient Temp. | -40/+70℃ | |||
| Weight | 53g | |||
| Terminal type | PCB&QC | |||
| Package | Plastic sealed dusted proof | |||

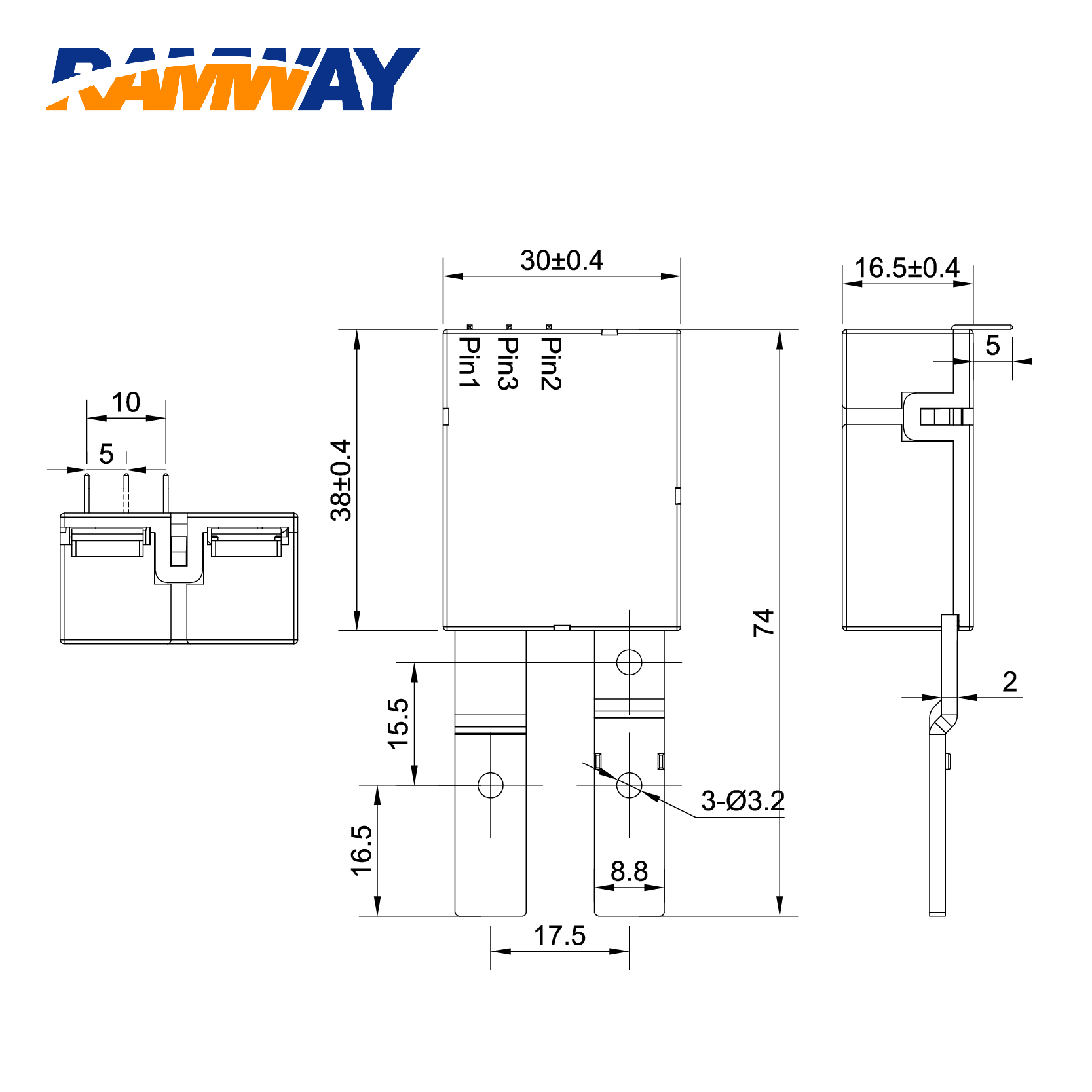

| Size(mm) | 38*30*16.5 | |||
|
Contact Data |
||||
| Contact?form | 1A&1B | |||
| Contact material | AgSnO2 | |||
| Contact resistance | 0.8mΩ | |||
| Maximum switching current | 100A | |||
| Maximum switching voltage | 250VAC | |||
| Maximum switching power | 25,000VA | |||
| Rated load electrical life on/off ratio(S)10:20 | load voltage | 220-250VAC | ||
| load current | 60/80A | |||
| PF=1.0 PF=0.5 | 5000+5000 | |||
| Mechanical life | 100,000 cycles | |||
|
Coil Data |
||||
| VDC Rated Voltage | Resistance±10%（Ω） | VDC Rated Voltage | ||
| Single | Double | |||
| 6 | 24 | 12.0×2 | ≤70% Rated Voltage | |
| 9 | 54 | 27.0×2 | ||
| 12 | 96 | 48.0×2 | ||
| 24 | 384 | 192.0×2 | ||
?
